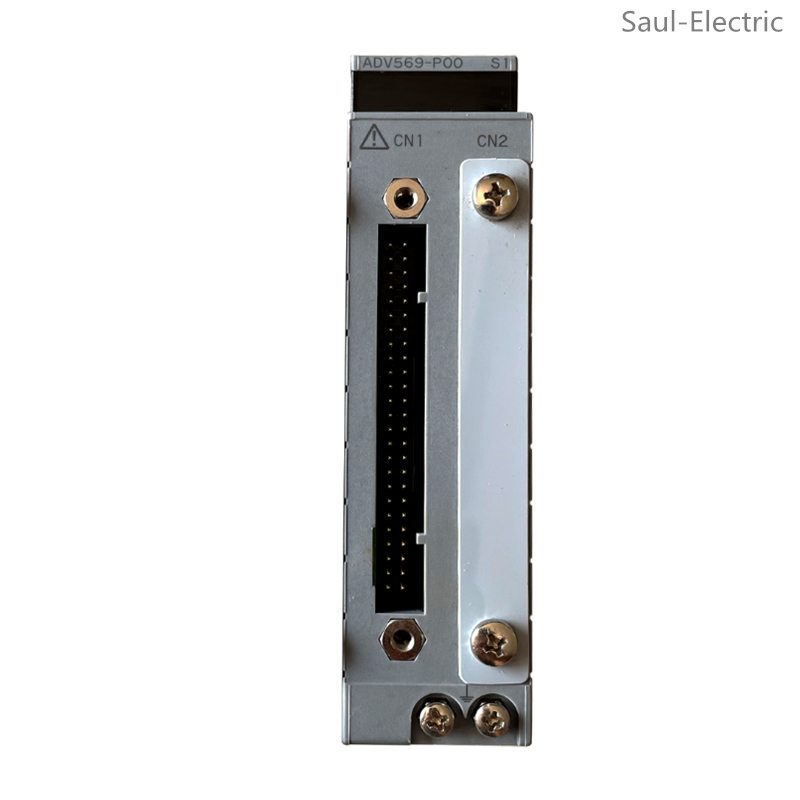

The Yokogawa ADV569-P00 is a digital output module designed for use in industrial process control systems.

It takes digital signals from a control system and converts them into electrical signals that can be used to control field devices like valves, actuators, or lights.

• Function: Converts digital signals from a control system into electrical control signals for field devices.
• Number of Channels: This module boasts 64 individual output channels, allowing it to control a significant number of devices simultaneously.
• Isolated Channels: The “Isolated” designation signifies that each output channel is electrically isolated from each other and from the power supply. This helps to prevent electrical noise or ground loops from affecting other devices in the system.
• Common Minus Side Every 16 Channels: This means that within each group of 16 channels, all negative terminals share a common connection.
