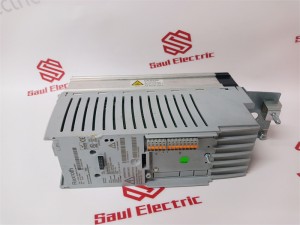

REXROTH FCS01.1E-W0011-A-04-NNBV R911311065 Variable frequency drivec

Short Description:

Brand: REXROTH

Model Name:FCS01.1E-W0011-A-04-NNBV R911311065

Warranty: one year

Stock: In stock


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Package: original package
  • colour: brand new
  • warranty: one year
  • In stock: In stock
  • Product Detail

    Product Tags

    Bosch Rexroth IndraDrive Fc AC frequency converter is used for 2.2kW (3.0HP) 400V three-phase motor, VxF or sensorless vector control to 5.5A. For standard AC induction motors, 400V three-phase input settings are simple. Keyboard not included – For keyboard options, see the linked products below.

    Dimension B: 73mm wide x 153mm deep x 226mm high (260mm high if wall mounting bracket is installed) IP20.

    Weight: 1.8kg (about).

    Overload – 150% x60 seconds, 200% x3.5 seconds

    Speed control range – 0-400Hz.

    Braking – to an external resistor of less than 130 ohms (not provided) – see the resistor option linked below or use the “Which resistor” button on this page.

    Functions – 2 analog/digital inputs, 5 digital inputs, 1 analog output, 2 relay contact groups, RS232, RS485. DC bus terminals for common bus energy-saving applications.

    It can be programmed from a PC via “IndraWorks” software and PC cable – see linked products below.

    Input current – 7.7. Input voltage – 380-480V three-phase – 20%+10%, 50/60Hz ± 5%. EMC filter conforming to IEC/EN 55011 Class A environment (industrial)

    Wall mounted clean environment or compartment installation. The rated ambient temperature is 40 ° C. Ventilation space above and below – 100mm. Side ventilation space – 0mm (drives can be installed side by side)

    Heat loss at output. It is installed through 2 removable radiator mounting brackets at the rear (top and bottom). 1 x 5.5mm diameter hole per bracket.

    The complete part number is FCS01.1E-W0011-A-04-NNBV or R911311065.

    REXROTH FCS01.1E-W0011-A-04-NNBV R911311065 (1)
