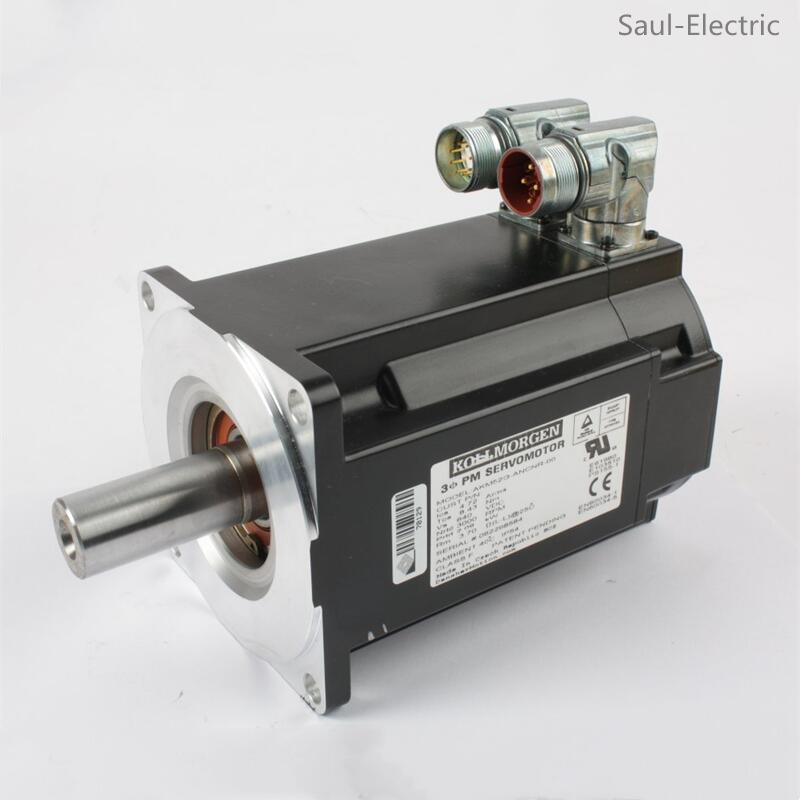

The Kollmorgen AKM52K-ANCNR-00 is a high-performance DC brushless servo motor with a variety of impressive features. Here’s a breakdown of its key specifications:

• Type: DC Brushless Servo Motor (AKM series)
• Maximum Bus Voltage: 640VDC
• Rated Output: 2.04kW / 2.74HP
• Stall Torque: 8.6Nm / 76.12lb-in
• Nominal Torque: 3.25Nm
• Rotational Speed: 6000rpm
• Encoder: Pre-assembled resolver (16-bit, 2-pin)
• Shaft: 50mm height smooth shaft
• Flange: 108x108mm IEC flange (tolerance N)
• Protection Rating: IP65 (protected against dust and water jets)
• Connectors: 2x angled rotatable M23 Speed Tec Ready connectors
