General Electric DS200FCGDH1B LCI Control and Gating Board guaranteed quality

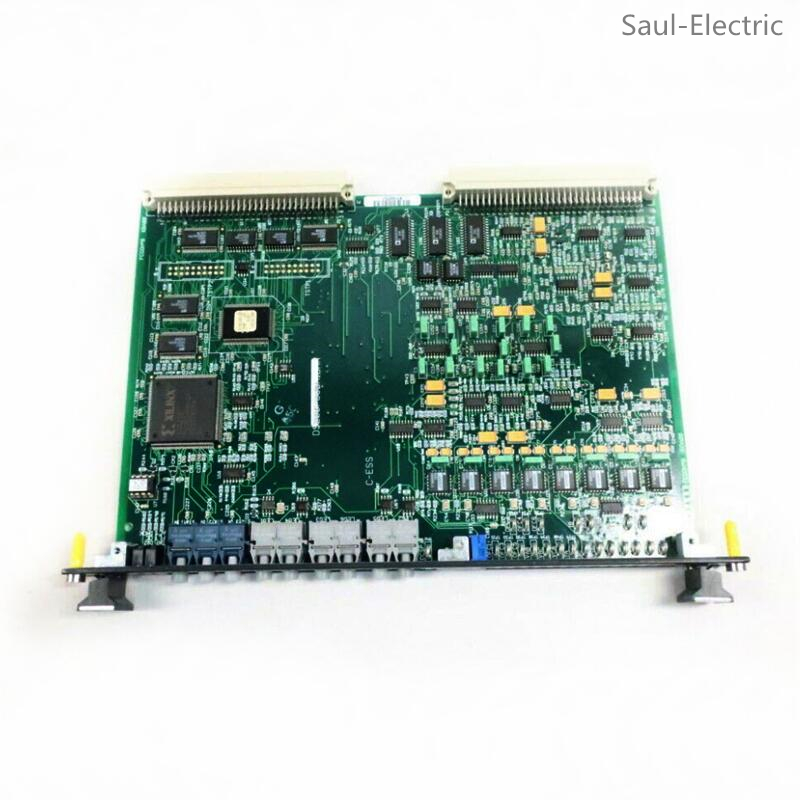

General Electric DS200FCGDH1B LCI Control and Gating Board
The DS200FCGDH1B is a gate distribution and status card (FCGD) designed by General Electric for their Mark V series drives.
It acts as an interface for the system’s six pulse, phase controlled non-reversing bridge.
GE DS200FCGDH1B PRODUCT INFORMATION：
1. Data Processing: It receives information from the drive’s digital signal processing card (DSPC) and translates it into cell gating signals.
2. Signal Distribution: These cell gating signals are then sent to all the system’s bridge legs.
3. Status Monitoring: The bridge legs return multiplexed cell status information to the FCGD board
4. Feedback Processing: It also receives feedback signals from various sources and scales them. This feedback includes:
5. Status Indication: An LED status indicator provides basic information on the system’s operational state
①Frequency
②Voltage
③Board status information (from three FGPA boards via fiber optic connections)
GE DS200FCGDH1B Related Fields
1. Chemical processing
2. Oil and gas refining
3. Power generation
4. Water and wastewater treatment
5. Pulp and paper
6. Food and beverage
