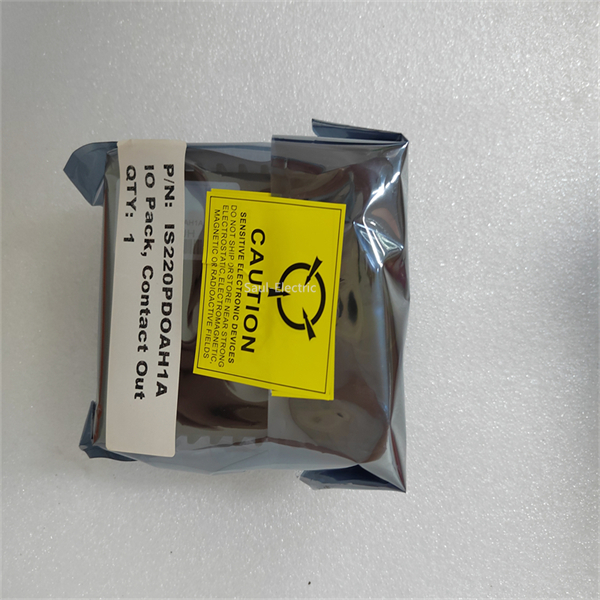

GE IS220PDOAH1A Discrete Output Pack

Short Description:

Brand: GE

Model Name：IS220PDOAH1A

Warranty: one year

Stock: In stock

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Package: original package

colour: brand new

warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

HONG KONG SAUL ELECTRICAL LIMITED.

Manager: Jinny

E-mail: sales7@saulplc.com

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791 （WhatsApp）

Wechat: + 86-15359273791

Address: Room 609, Strait Modern City, No.510 Xin’ao Road, Xindian Town, Xiang’an District, Xiamen

Pack IS220PDOAH1A is labeled as a Discrete Output Pack. Its main function is to provide electrical interfaces between up to two input-output Ethernet networks as well as a discrete output terminal board. The PDOA pack can potentially control up to twelve relays plus accept terminal board-specific feedback.

Characterized as a Discrete Output Pack the IS220PDOAH1A model was designed with interfacing up to two I/O Ethernet networks and other discrete output terminal boards in mind. One special function of this model is that it can control up to twelve relays as well as accept feedback signals from other terminal boards. The typical relays that can be used with this model are solid-state relays and electromagnetic relays. The solid-state relays are used with the TRLYH1B, C, D, and F terminals whereas the electromagnetic relays are used with the TRLYH1E boards. The inputs that will be received on this pack with come through the double RJ45 Ethernet connectors as well as a three-pin power input.

There is a processor board embedded in the IS220PDOAH1A pack. There are multiple processors which include but are not limited to status-indicating LEDs, local power supplies for monitoring and sequencing, a high-speed processor which includes flash and RAM memory, and even more. All of the information on processors can be found in the GEH-721G Mark VIe Control System Guide, information can be found on pages two hundred and twenty-three to two hundred and thirty.

There is an output enable feature that is used with the IS220PDOAH1A pack. During the application in which power is given to the pack, all of the outputs will be disabled until a number of internal self-tests have been fulfilled. The enable function can provide paths that are independent of the command which will ensure that the relays are staying dropped out during the initialization and power-up of the pack.
