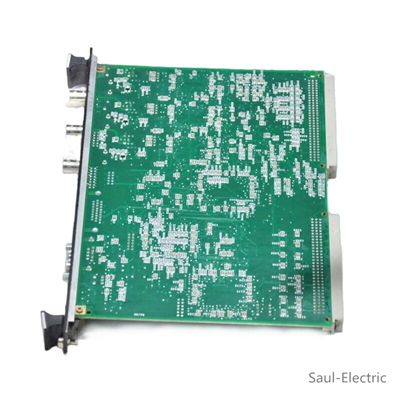

√ GE IS215VCMIH2B Mark VI Printed Circuit Board
The IS215VCMIH2B is a board component for the Mark VI system manufactured by General Electric. The MKVI was one of the final steam and gas management systems released by GE under the “Speedtronic” name. This line focused on using good design and multiple backups to create reliable management systems that would increase the efficiency of the related turbines.
The IS215VCMIH2B functions as a VME Bus Master Controller board. The board is designed to interface communications between the controller and the I/O boards. The IS215VCMIH2B also manages IDs for boards within the rack and associated terminal boards. There are two major versions of the VCMI board (VCMIH1/VCMIH2.)
The IS215VCMIH2B has four port connections located on its front faceplate. This includes one serial port and three IONet connectors. Each IONet connector has three LED indicators placed above it. These are labeled “TX,” “RX,” and “CD.” The board also has LED indicators labeled Run/Fail/Status (placed above a push button reset switch,) and four LEDs labeled 1,2,4, and 8. The faceplate connects to the main board using screws.
The IS215VCMIH2B is a 6U high VME board that is .0787 inches wide. It has a Texas Instruments 32-bit digital signal processor and 32-bit transfer configuration SRAM, 256k x 32. The board has two backplanes, a single 12-pin vertical male connector, (p5,) and several connectors made from conductive dots. The board uses integrated circuits, resistors, capacitors, and diodes. There are three transformers located near the front edge. The board has several transformers and over forty inductor beads.
