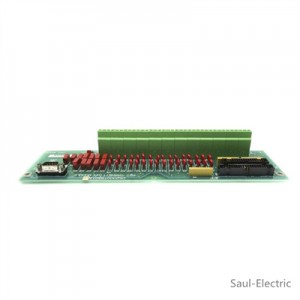

GE DS200QTBAG1ACB RST Termination Board | The GE RST Termination Board DS200QTBAG1A features 2 terminal blocks with terminals for 72 signal wires in each. It also contains 1 40-pin connector. The ID for the 40-pin connectors is JFF. It also is populated with 1 serial connector. The GE Termination Board DS200QTBAG1A is also populated with 1 34-pin connector. The ID for the 34-pin connector is JGG.
The 2 terminal blocks support a total of 144 terminal signal wires. Each of the terminals connects to a specific signal wire for processing. When the factory-new board is delivered to your site, it contains information about the 144 terminals and provides specific information about the purpose of each terminal. Use that information to know where to connect the signal wires. The ID of one terminal block is TB1 and the ID of the other terminal block is TB2. Additionally, each terminal is assigned a number. To ID a particular terminal, first identify the terminal block, then identify the terminal number. For example, TB1-66 is the terminal 66 on terminal block TB1. TB2-33 is the terminal 33 on terminal block TB2. Once the signal wires are connected properly and the board is operating as required, there is no need to disconnect or connect the signal wires from the terminals, unless there is a reason to change the processing of the board. This might be the case if the task assigned to the drive changes or other conditions change. Before you replace the board, mark on the signal wire the terminal block ID and the terminal number. |
