EPRO/EMERSON PR6423/010-010-CN

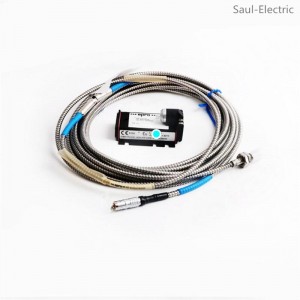

The EPRO PR6423/010-010-CN is an eddy current sensor designed for critical turbomachinery applications.

It measures radial and axial shaft dynamic displacement, position, eccentricity, and speed.

Key features:

1. Non-contact measurement: Eliminates the need for mechanical contact, reducing wear and tear on the shaft.

2. High accuracy: Provides precise measurements with a linear measurement range of 2 mm (80 mils).

3. Rugged construction: Built to withstand harsh environments with an IP66 protection rating and operating temperature range of -35 to +200°C.

4. Versatile applications: Suitable for a wide range of turbomachinery applications, including steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Specifications:

1. Measuring target: Minimum shaft diameter of 25 mm (0.79 in).

2. Target material: Ferromagnetic steel (42CrMo4 or AISI/SAE 4140) standard, other materials available on request.

3. Initial air gap: 0.5 mm (20 mils).

4. Incremental scale factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5%.

5. Deviation from best fit straight line (DSL): ± 0.025 mm (± 1 mil).

6. Operating range: -2… -18V or -4… -20V (depending on model).

7. Weight: Approx. 100 grams (3.53 oz).
