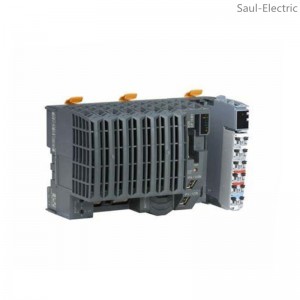

The B&R X20CP1485 CPU Module is the central processing unit (CPU) of the B&R X20 automation system. It acts as the brain of the system, responsible for executing control programs, managing data flow, and overseeing the overall operations. Here’s a detailed breakdown of its functionalities and considerations:

Functionalities:

• Program Execution: The X20CP1485 interprets and executes the control programs written for the B&R X20 system. These programs define the control logic for the entire automation process.
• Data Processing: It processes data received from various input modules (digital and analog) connected to the system. This data represents sensor readings or external signals from the physical environment.
• Decision Making: Based on the control program and real-time data, the CPU module makes control decisions. These decisions are then communicated to output modules to activate devices like actuators, valves, or motors.
• Communication: The X20CP1485 can communicate with other devices on the B&R X20 system through the X2X Link network (using a Bus Receiver Module like X20BR9300) or other communication interfaces depending on the model variation.
