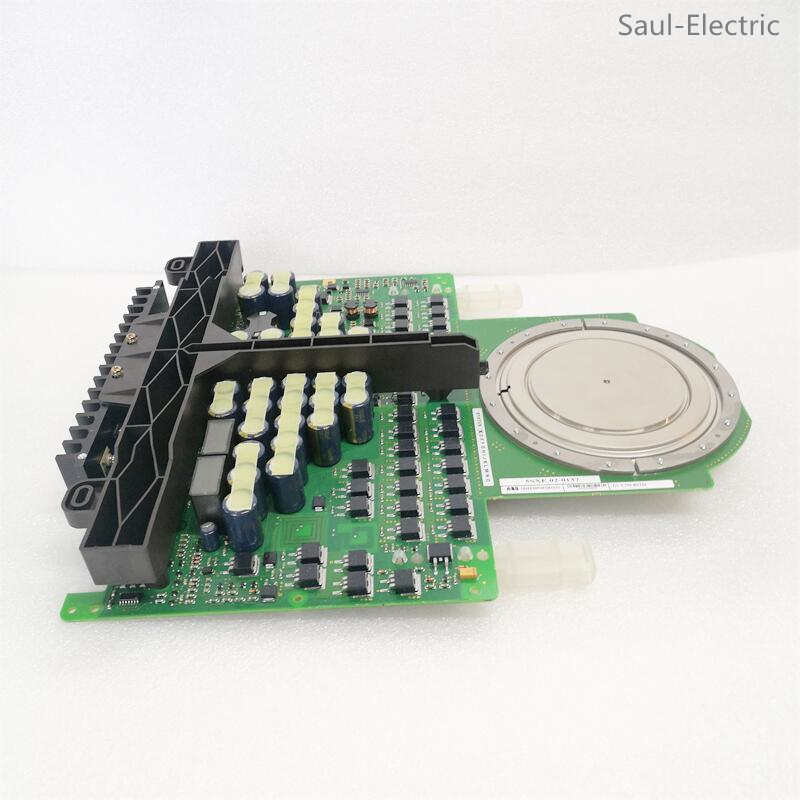

【 ABB 5SHY3545L0009 3BHE009681R0101 】

1. Overview
ABB 5SHY3545L0009 3BHE009681R0101 is a high-performance module in the field of industrial automation, belonging to the ABB 5SH series. This module is mainly used in high-voltage direct current (HVDC) transmission systems, with the characteristics of high efficiency, high reliability, and long service life, suitable for various industrial environments and complex application scenarios.

2. Parameters
Rated voltage: 3.5kV to 6kV.
Rated current: 4.5kA to 35kA.
Switch loss: ≤ 1.5 joules/cm ².
Switching frequency: ≤ 1200Hz.
Working temperature range:- 40 ° C to 55 ° C.
Storage temperature range:- 55 ° C to 85 ° C.
Relative humidity: ≤ 95% (non condensing).
Protection level: IP20。
Dimensions: 350 mm x 225 mm x 100 mm.
Weight: Approximately 3.4 kilograms.

3. Product features
High efficiency: Adopting IGCT (Integrated Gate Reversing Thyristor) technology, it has low conduction voltage drop and fast switching speed, ensuring high efficiency and low loss.
High reliability: The module design adopts mature technology, with a service life of over 20 years, suitable for harsh industrial environments.
Multi functional integration: compatible with ABB’s other industrial automation products, supporting multiple communication interfaces (such as Ethernet, serial communication, etc.).
Compact design: small size, light weight, easy to install and maintain.
Low noise operation: Low operating noise helps improve the working environment.

4. Structure and composition
Shell material: high-strength aluminum alloy, providing good mechanical protection.
Internal structure: The module contains IGCT chips, heat sinks, and other key components to ensure efficient heat dissipation and stable operation.
Installation method: Supports rack installation or panel installation, the specific installation method needs to be selected according to actual needs.

5. Application Fields
High voltage direct current transmission (HVDC) system: used in scenarios such as submarine cables and land power transmission.
Renewable energy generation: such as the control of solar inverters.
Power system management: including power management, motor driver control, etc.
Industrial automation: suitable for scenarios such as manufacturing and energy management that require efficient and reliable power transmission.
