Model Number:	1756-IF16/A
Product Description：	ControlLogix 16 Point A/I Module
Manufacturers:	A-B
Product Information:	The Allen-Bradley 1756-IF16 is a ControlLogix module that features Sixteen (16) single ended or Eight (8) Differential or Four (4) differential high-speed analog input channels. This module supports input signal ranges of ±10V, 0-10V, 0-5V and 0-20 mA with resolution of 320 µV/count (15 bits + sign bipolar) @ ±10.25V; 160 µV/count (16 bits) @ 0-10.25V; 80 µV/count (16 bits) @ 0-5.125V and 0.32 µA/count (16 bits) @ 0-20.5 mA. This module is used with 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB). Total Backplane power：2.33 W Backplane Current： 24VDC 65 mA Backplane Current： 5.1VDC 150 mA Series：ControlLogix Module Type：Analog Input module Inputs：16 single, 8 differential, 4 highspeed differential Input Resolution(+/-)： 10.25 Volts, 0 to 5.125 Volts, 0 to 10.25 Volts Backplane Current (5Volts)：150 milliamps Backplane Current (24Volts)：65 milliamps Power Dissipation (Max)：2.3 Watts (Voltage), 3.9 Watts (Current) Removeable Terminal Blocks：1756-TBCH, 1756-TBS6H Maximum Input Current, Off-State：1.5 milliamperes
Weight:	2.2 kg
Dimensions:	30 x 36 x 8 inches
Package Type:	Carton
Shipping :	FEDEX/DHL/EMS/UPS/TNT/EMS
Manager:	Jinny
E-mail:	·sales7@saulplc.com·sales5@xrjdcs.com
Tel:	+ 86-15359273791 （WhatsApp）
Wechat:	+ 86-15359273791
Product Images：

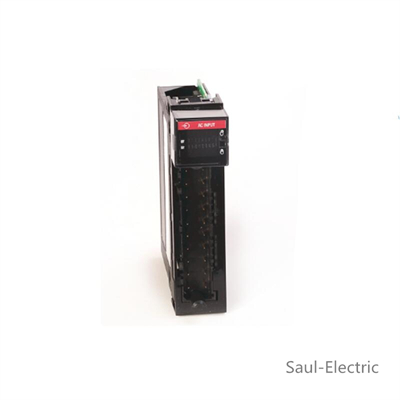

The Allen-Bradley 1756-IF16 is a ControlLogix analog input module. This module accepts current and voltage signals such as ±10V, 0-10V, 0-5V and 0-20 mA. This module supports Three (3) types of signal wiring configuration such as single-ended, differential and high-speed differential wiring. Among the supported wiring configurations, single-ended wiring is the most sensitive to noises and must be used with signals having a common ground. For increased noise susceptibility, differential wiring method is used while high-speed differential wiring is used in systems that require fast data updates, relative to the input signals.

With single-ended wiring, the module becomes a Sixteen (16) channel analog input module. Similarly, the module is reduced to an Eight (8) channel analog input module when used with differential wiring. Furthermore, the module becomes a Four (4) channel analog input module when the module is wired as high-speed differential wiring.
